blade5

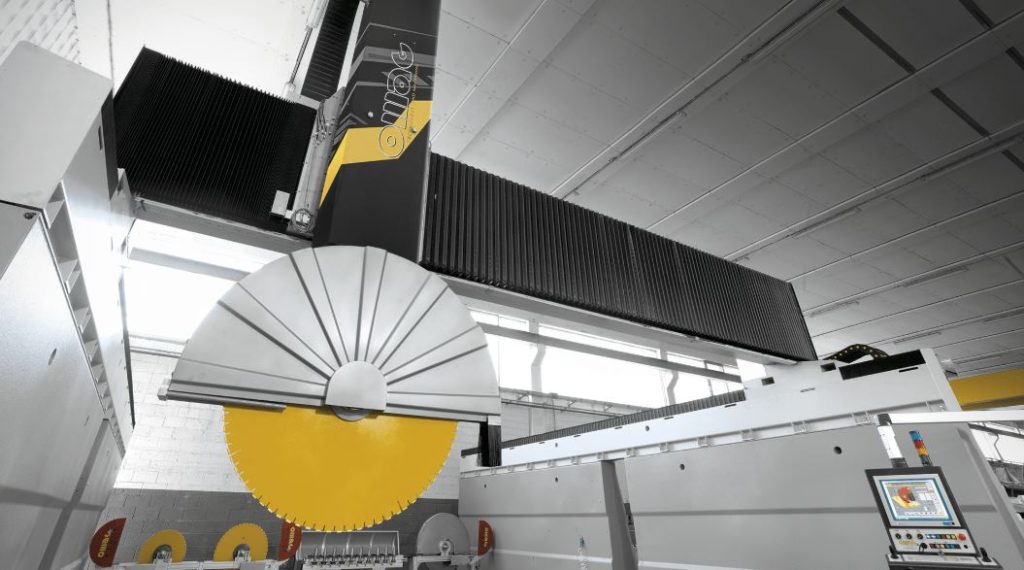

Iblade5 is an advanced cutting solution designed to deliver high precision and efficiency in industrial applications. It is built with modern technology to ensure accurate cutting performance, durability, and reliability in demanding environments. The system supports multiple axis movements, allowing smooth and controlled operations for complex cutting tasks. With its powerful motor and optimized design, Iblade5 enhances productivity while maintaining consistent quality. It is suitable for stone, ceramic, and other material processing industries, providing stable performance and reduced operational downtime.
| INTERPOLATED CONTROLLED AXES | n° | 5 |
| MAXIMUM DIAMETER SAW | mm | 1600 |
| CUTTING THICKNESS | mm | 600 |
| MINIMUM DIAMETER SAW | mm | Ø625 |
| AXIS X - TRANSVERSAL STROKE | mm | 4000 |
| AXIS Y - LONGITUDINAL STROKE | mm | 3000 |
| AXIS Z - VERTICAL STROKE | mm | 1000 ÷ 2000 |
| AXIS C - ROTATION | ° | 0 ÷ 380° |
| AXIS B - TILTING | ° | 0° ÷ +140° |
| TABLE SIZES | mm | 4000 x 2500 |
| ISO AUTOMATIC BLADE CHANGE | mm | Ø625 |
| ISO AUTOMATIC BLADE CHANGE | mm | Ø850 |
| ISO AUTOMATIC BLADE CHANGE | mm | Ø1200 |
| MOTOR POWER | 78 HP (S6) | |
| TOOL ATTACHMENT | ISO50 | |
| ROTATING CONTROL BY INVERTER | RPM | 0 ÷ 8000 |
| WATER CONSUMPTION | L/min | 80 |
